Original price was: $25.00.$24.00Current price is: $24.00.

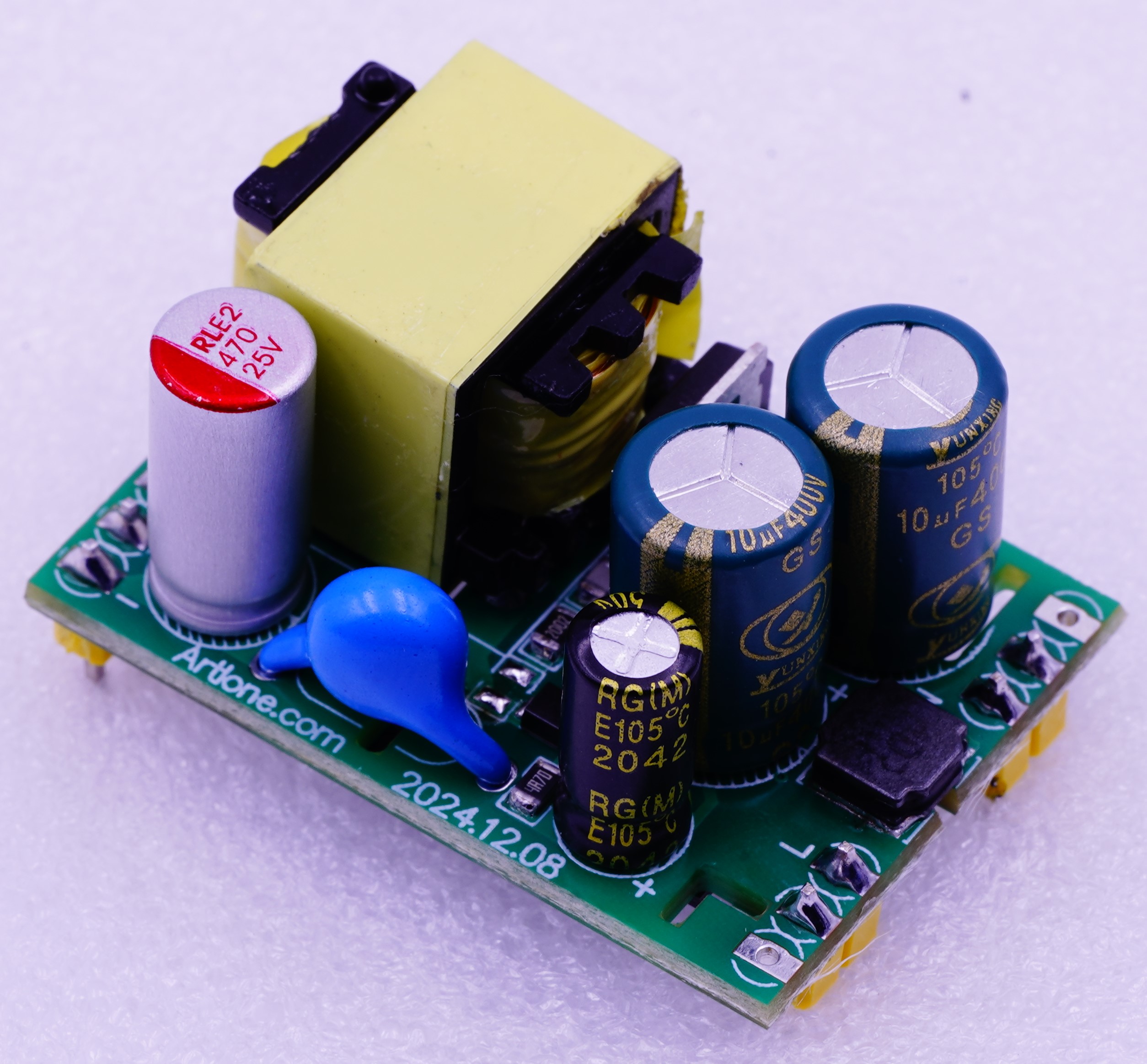

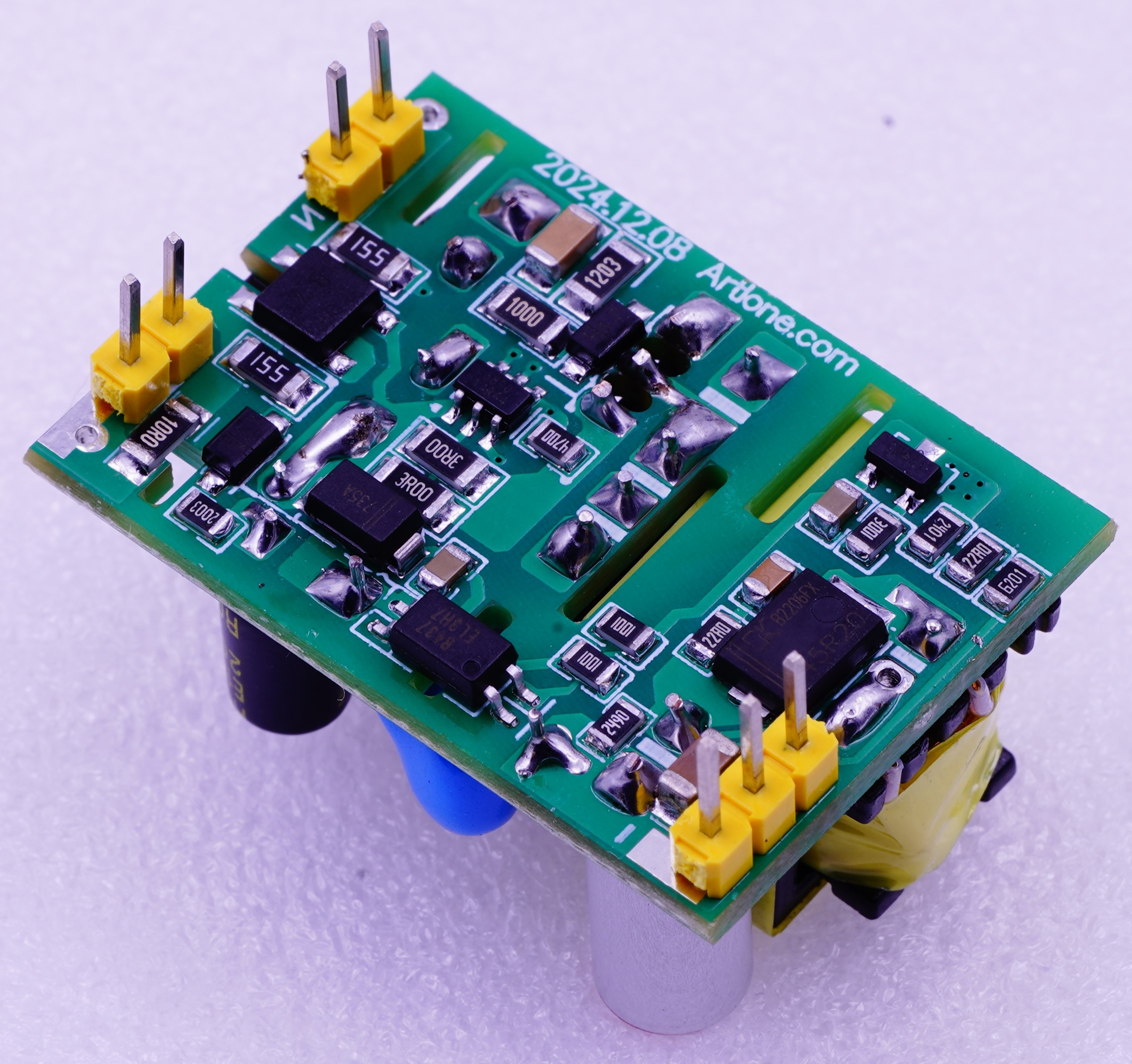

This is an AC-to-DC power supply module. It features a compact size and high efficiency, making it suitable for use in various small electrical devices.
Application Fields:
Industrial equipment, instrumentation, RF communications, rail transit, smart street lighting, smart switches, low-power LED lighting, and smart home applications.
Description
-
Product Features
-
Packaging and Mounting Options:
Bare-board pin-out type, pin-out type with housing, wire-lead type with housing -
Temperature Range: -40°C to +85°C
-
Conversion Efficiency: 85–87%
-
Isolation Withstand Voltage: 3000 VDC
-
Input Range: 85–380 VAC, 120–630 VDC
-
Output Protection: Overcurrent and short-circuit protection
-
Certifications: CE and ROHS compliant
Application Fields:
Industrial equipment, instrumentation, RF communications, rail transit, smart street lighting, smart switches, low-power LED lighting, and smart home applications.Input Characteristics:
Parameter Condition Min Typ Max Unit Input Voltage Range AC Input 85 380 450 Vac DC Input 120 532 630 Vdc Input Frequency AC Input 47 — 63 Hz Input Current DC Input (at 532V) — 28 — mA Start-up Time 800 — 1500 ms Inrush Current AC Input 10 A Input Filter Type LC External Fuse AC Input: 1A/500VAC, slow-blow, mandatory. DC Input: 1A/1KV, slow-blow, mandatory. Output Characteristics:
Parameter Condition Model Min Typ Max Unit Output Voltage Accuracy ±1.0 ±1.5 % Line Regulation Full load ±0.25 ±0.5 % Load Regulation 10%~100% load AT380-10W — ±1.0 ±2 % Ripple & Noise 20MHz bandwidth, 100% load AT380-10W — — 120 mV Temperature Coefficient Full load ±0.05 %/°C Short-Circuit Protection Continuous, auto-recovery Overcurrent Protection AT380-10W 110~150% Io, auto-recovery Minimum Load 0% -
Additional information
| Weight | 0.004 g |
|---|
